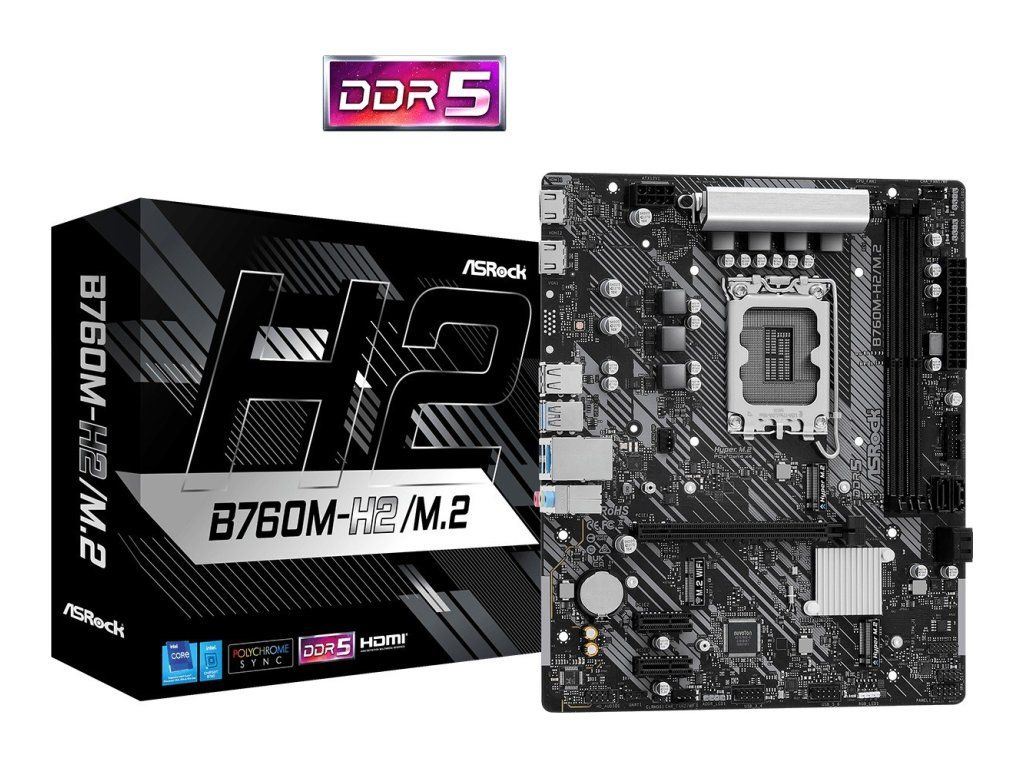

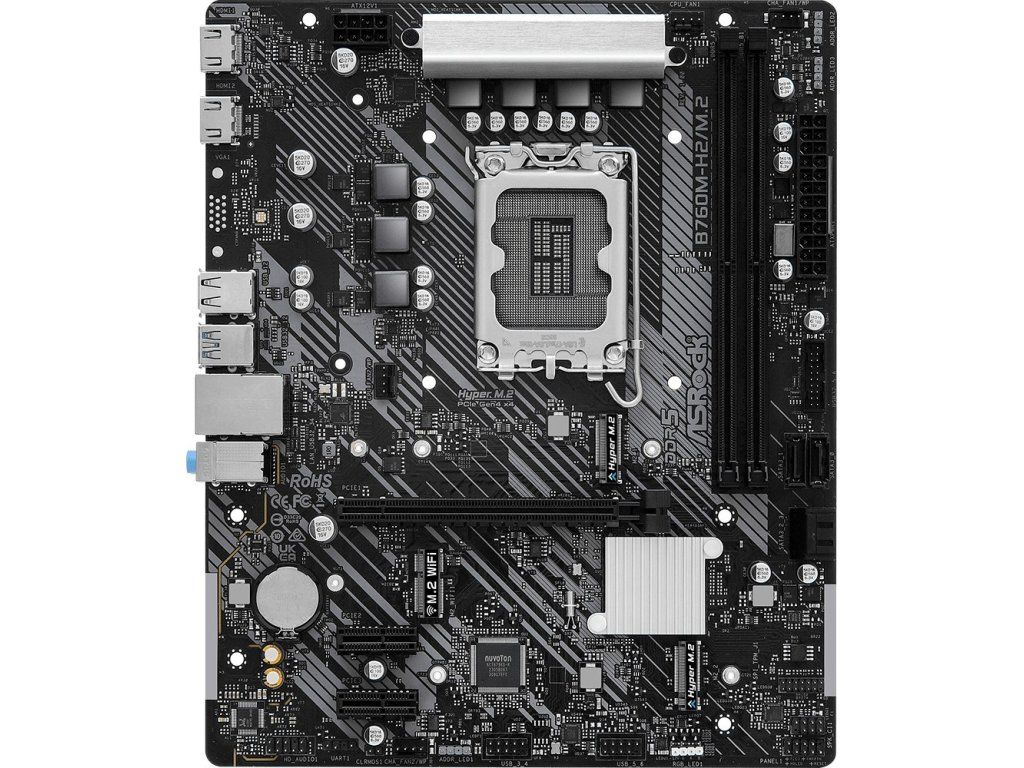

ASRock B760M-H2/M.2 motherboard
Kod: PLYASR1700066
Dostava sljedeći dan
Na bilo koje mjesto
Garancija isporuke
Neoštećena roba
Preko 3.000 mjesta točenja
Po cijeloj Hrvatskoj
Detaljan opis proizvoda
Nema dostupnog opisa proizvoda
Dodatni parametri
| Kategorija: | Motherboards Socket-1700 |
|---|---|
| Težina: | 0.79 kg |
| EAN: | 4710483944215 |
| Processor manufacturer: | Intel |
| Maximum number of SMP processors: | 1 |
| Compatible processor series: | Intel® Core™ i7, Intel® Core™ i3, Intel® Core™ i9, Intel® Core™ i5 |
| Processor socket: | LGA 1700 |
| Parallel processing technology support: | Not supported |
| Windows operating systems supported: | Windows 11 x64, Windows 10 x64 |
| Audio output channels: | 7.1 channels |
| Motherboard chipset: | Intel B760 |
| Motherboard form factor: | micro ATX |
| Audio chip: | Realtek ALC897 |
| Motherboard chipset family: | Intel |
| Unbuffered memory: | Yes |
| Number of memory slots: | 2 |
| Maximum internal memory: | 96 GB |
| Supported memory types: | DDR5-SDRAM |
| Memory slots type: | DIMM |
| Depth: | 201 mm |
| Width: | 244 mm |
| LAN controller: | Dragon RTL8125BG |
| Wi-Fi: | Yes (Requires antenna) |
| Ethernet LAN: | Yes |
| Ethernet interface type: | Gigabit Ethernet |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| USB 2.0 connectors: | 2 |
| Number of SATA III connectors: | 4 |
| Front panel audio connector: | Yes |
| TPM connector: | Yes |
| ATX Power connector (24-pin): | Yes |
| CPU fan connector: | Yes |
| LED connector: | Y |
| 12V power connector (8-pin): | Y |
| BIOS type: | UEFI AMI |
| RAID levels: | 10, 0, 1, 5 |
| Supported storage drive types: | HDD & SSD |
| RAID support: | Yes |
| Supported storage drive interfaces: | M.2, SATA III |
| USB 2.0 ports quantity: | 2 |
| HDMI ports quantity: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 4 |
| Ethernet LAN (RJ-45) ports: | 1 |
| WiFi-AP antenna jack: | 2 |
| Number of audio jack connectors: | 3 |
| PCI Express x1 (Gen 3.x) slots: | 2 |
| Number of M.2 (M) slots: | 1 |
| PCI Express x16 (Gen 4.x) slots: | 1 |
