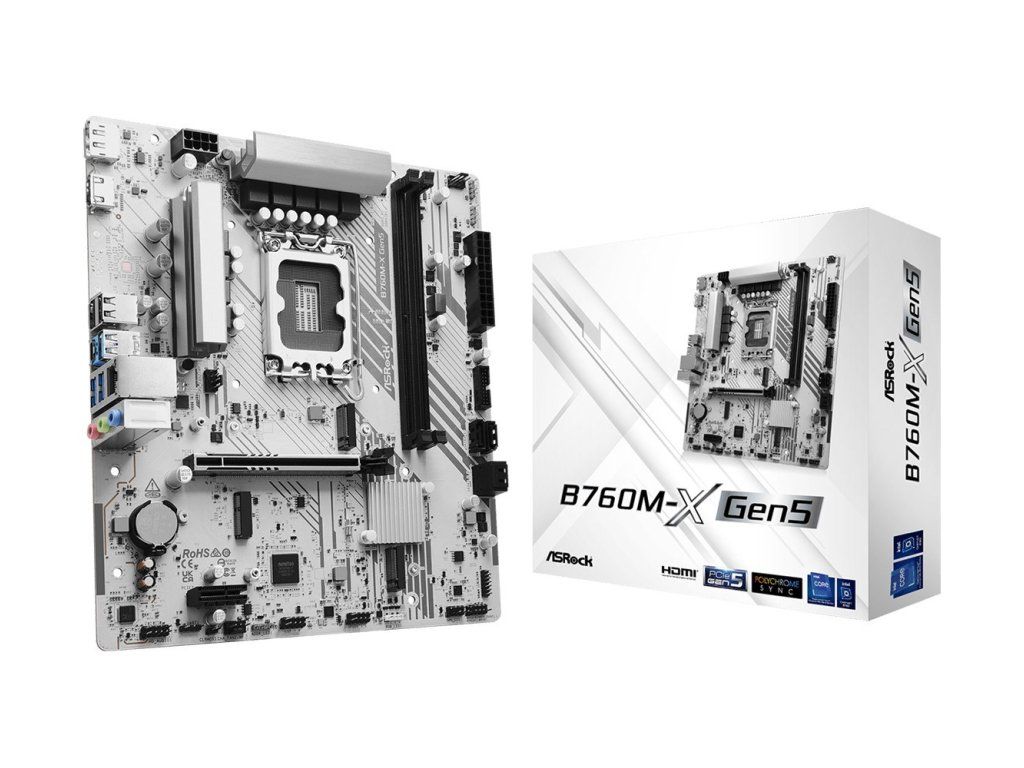

Asrock B760M-X Gen5 Intel B760 LGA 1700 micro ATX
Kod: PLYASR1700076
Dostava sljedeći dan
Na bilo koje mjesto
Garancija isporuke
Neoštećena roba
Preko 3.000 mjesta točenja
Po cijeloj Hrvatskoj
Detaljan opis proizvoda
Nema dostupnog opisa proizvoda
Dodatni parametri
| Kategorija: | Motherboards Socket-1700 |
|---|---|
| Težina: | 1 kg |
| EAN: | 4711581492356 |
| Compatible processor series: | Intel Core i5 12th Gen, Intel Core i3 13th Gen, Intel Core i3 12th Gen, Intel Core i5 14th Gen, Intel Core i3 14th Gen, Intel Core i5 13th Gen |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1700 |
| Audio chip: | Realtek ALC897 |
| Motherboard chipset family: | Intel |
| Motherboard chipset: | Intel B760 |
| Motherboard form factor: | micro ATX |
| Audio output channels: | 7.1 channels |
| Windows operating systems supported: | Windows 11 x64, Windows 10 x64 |
| Maximum internal memory: | 128 GB |
| Supported memory clock speeds: | 7200 |
| Unbuffered memory: | Yes |
| Number of memory slots: | 2 |
| Supported memory types: | DDR5-SDRAM |
| Memory slots type: | SO-DIMM |
| ECC сompatibility: | Non-ECC |
| Memory channels: | Dual-channel |
| Width: | 244 mm |
| Depth: | 221 mm |
| LAN controller: | Dragon RTL8125BG |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Ethernet LAN: | Yes |
| Top Wi-Fi standard: | Not available |
| Wi-Fi: | No |
| ATX Power connector (24-pin): | Yes |
| Number of SATA III connectors: | 4 |
| CPU fan connector: | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| USB 2.0 connectors: | 2 |
| EPS power connector (8-pin): | Yes |
| Front panel audio connector: | Yes |
| RGB LED pin header: | Yes |
| TPM connector: | Yes |
| BIOS type: | UEFI AMI |
| Cables included: | SATA |
| RAID support: | Yes |
| RAID levels: | 10, 0, 5, 1 |
| Supported storage drive interfaces: | SATA III, M.2 |
| Number of storage drives supported: | 6 |
| Ethernet LAN (RJ-45) ports: | 1 |
| USB 2.0 ports quantity: | 2 |
| DisplayPort version: | 1.4 |
| DisplayPorts quantity: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: | 1 |
| HDMI ports quantity: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 3 |
| Number of M.2 (M) slots: | 2 |
| PCI Express x1 (Gen 3.x) slots: | 1 |
| PCI Express x16 (Gen 5.x) slots: | 1 |
