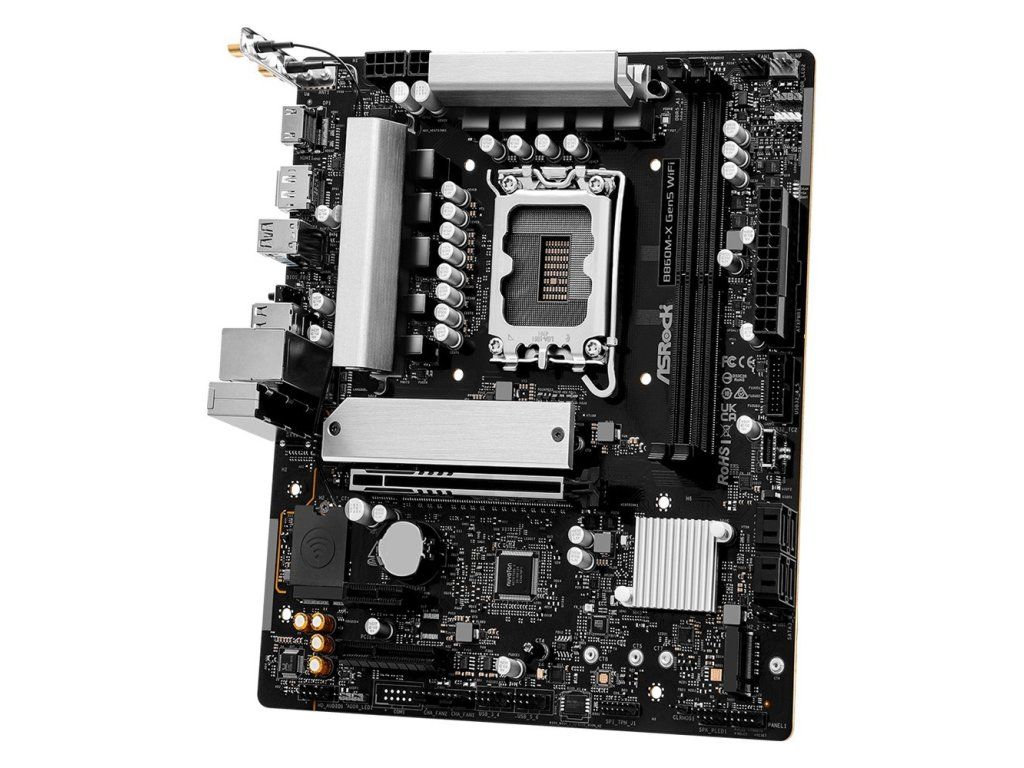

Asrock B860M-X GEN5 WIFI motherboard
Kod: PLYASR1850045
Dostava sljedeći dan
Na bilo koje mjesto
Garancija isporuke
Neoštećena roba
Preko 3.000 mjesta točenja
Po cijeloj Hrvatskoj
Detaljan opis proizvoda
Nema dostupnog opisa proizvoda
Dodatni parametri
| Kategorija: | Motherboards Socket-1851 |
|---|---|
| Težina: | 1.1 kg |
| EAN: | 4711581490734 |
| Processor socket: | LGA 1851 (Socket V1) |
| Supported processor sockets: | LGA 1851 |
| Compatible processor series: | Intel Core Ultra (Series 2) |
| Processor manufacturer: | Intel |
| On-board graphics card family: | Intel Iris Xe Graphics |
| HDCP: | Yes |
| Motherboard chipset: | Intel B860 |
| Motherboard chipset family: | Intel |
| Audio chip: | Realtek ALC897 |
| Windows operating systems supported: | Windows 11 x64 |
| Audio output channels: | 7.1 channels |
| Motherboard form factor: | micro ATX |
| Certification: | FCC, CE, ErP/EuP |
| Unbuffered memory: | Yes |
| Memory channels: | Dual-channel |
| Number of memory slots: | 2 |
| Supported memory types: | DDR5-SDRAM |
| Memory slots type: | DIMM |
| Maximum internal memory: | 128 GB |
| ECC сompatibility: | Non-ECC |
| Depth: | 218 mm |
| Width: | 244 mm |
| Bluetooth version: | 5.3 |
| Ethernet LAN: | Yes |
| Bluetooth: | Yes |
| Wi-Fi standards: | Wi-Fi 6E (802.11ax), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n), 802.11g, 802.11b, Wi-Fi 5 (802.11ac) |
| Top Wi-Fi standard: | Wi-Fi 6E (802.11axe) |
| Wi-Fi: | Yes |
| LAN controller: | Dragon RTL8125BG |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Ethernet LAN data rates: | 10,100,1000,2500 Mbit/s |
| MU-MIMO: | Yes |
| Number of SATA III connectors: | 4 |
| 12V power connector: | Yes |
| USB 2.0 connectors: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: | 1 |
| Number of chassis fan connectors: | 2 |
| RGB LED pin header: | Yes |
| Front panel audio connector: | Yes |
| TPM connector: | Yes |
| ATX Power connector (24-pin): | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 1, 3 |
| Number of water pump connectors: | 1 |
| Number of CPU fan connectors: | 2 |
| Number of RGB LED pin headers: | 1 |
| CPU fan connector: | Yes |
| BIOS type: | UEFI AMI |
| RAID levels: | 1, 10, 5, 0 |
| RAID support: | Yes |
| Supported storage drive types: | HDD & SSD |
| Ethernet LAN (RJ-45) ports: | 1 |
| USB connector type: | USB Type-A, USB Type-C |
| Antennas quantity: | 2 |
| USB 2.0 ports quantity: | 2 |
| HDMI ports quantity: | 1 |
| DisplayPorts quantity: | 1 |
| Flashback BIOS button: | Yes |
| DisplayPort version: | 1.4 |
| USB 3.2 Gen 2x2 Type-C ports quantity: | 1 |
| Number of M.2 (M) slots: | 1 |
| PCI Express x16 (Gen 5.x) slots: | 1 |
| PCI Express x4 (Gen 4.x) slots: | 1 |
| PCI Express x1 (Gen 4.x) slots: | 1 |
