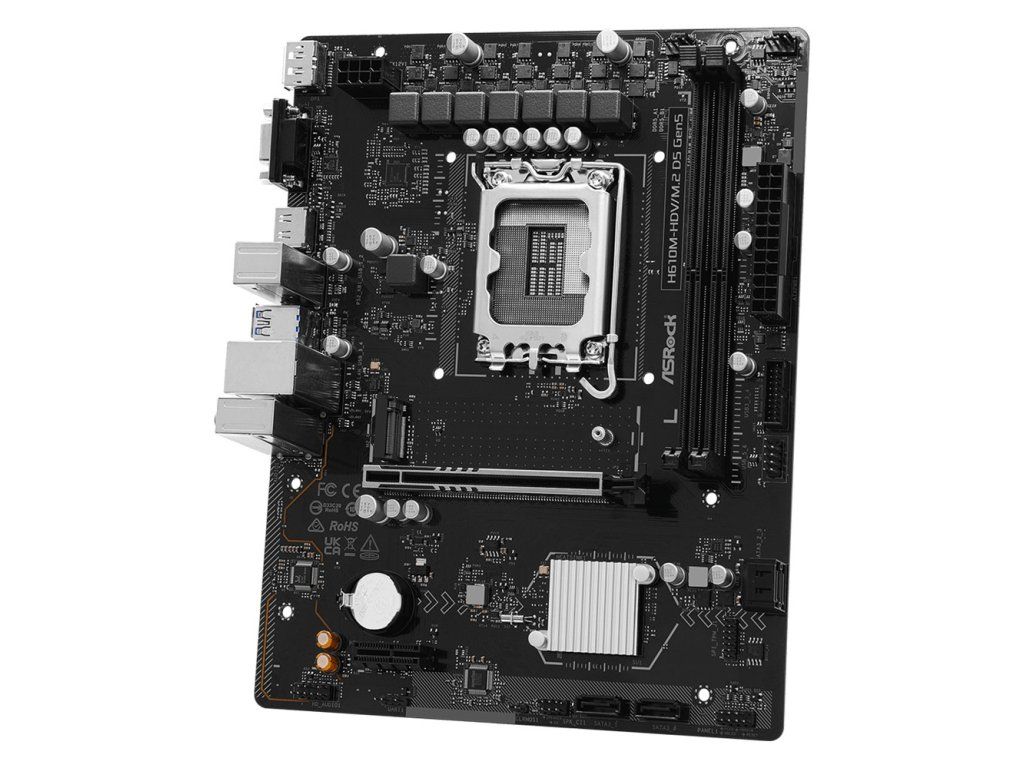

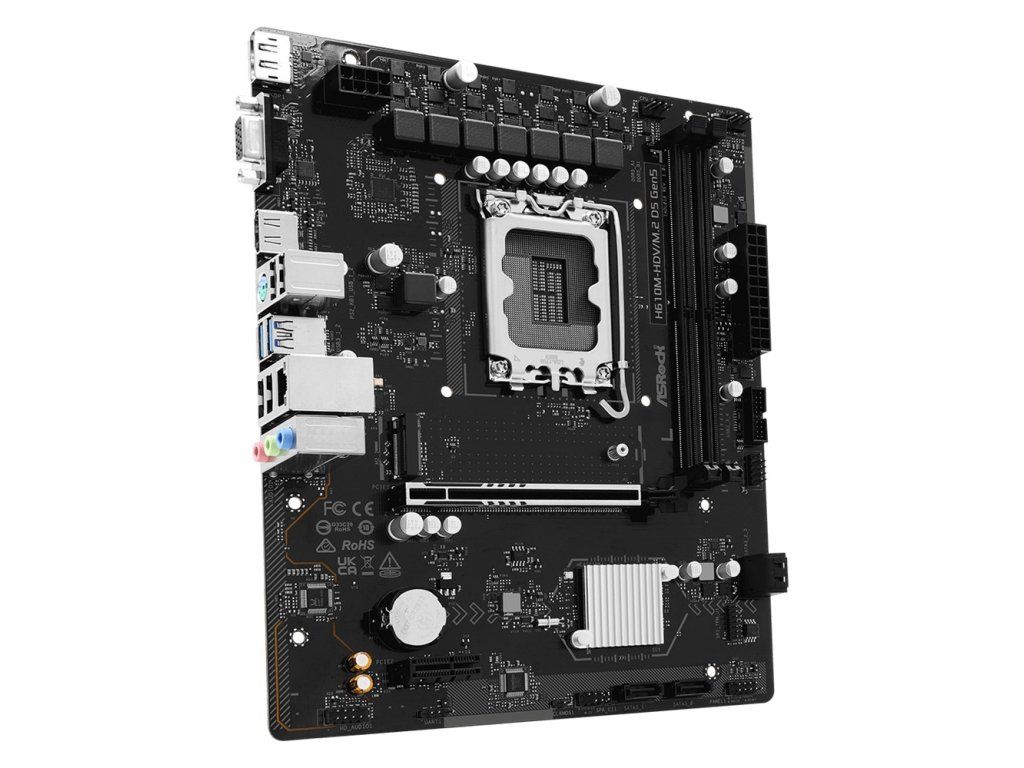

Asrock H610M-HDV/M.2 D5 Gen5 Intel H610 LGA 1700 micro ATX
Kod: PLYASR1700078
Dostava sljedeći dan
Na bilo koje mjesto
Garancija isporuke
Neoštećena roba
Preko 3.000 mjesta točenja
Po cijeloj Hrvatskoj
Detaljan opis proizvoda
Nema dostupnog opisa proizvoda
Dodatni parametri
| Kategorija: | Motherboards Socket-1700 |
|---|---|
| Težina: | 0.785 kg |
| EAN: | 4711581492431 |
| Maximum number of SMP processors: | 1 |
| Processor manufacturer: | Intel |
| Compatible processor series: | Intel Core i7 13th Gen, Intel Core i5 13th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i5 12th Gen, Intel Core i7 14th Gen, Intel Core i7 12th Gen, Intel Core i5 14th Gen, Intel Core i9 14th Gen |
| Processor socket: | LGA 1700 |
| HDCP: | Yes |
| HDCP version: | 2.3 |
| On-board graphics card model: | Intel Iris Xe Graphics |
| Motherboard chipset: | Intel H610 |
| Motherboard form factor: | micro ATX |
| Motherboard chipset family: | Intel |
| Audio chip: | Realtek ALC897 |
| Windows operating systems supported: | Windows 10 x64, Windows 11 x64 |
| Audio output channels: | 7.1 channels |
| Supported memory types: | DDR5-SDRAM |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Unbuffered memory: | Yes |
| Number of memory slots: | 2 |
| ECC сompatibility: | Non-ECC |
| Maximum internal memory: | 128 GB |
| Width: | 244 mm |
| Depth: | 193 mm |
| Wi-Fi: | No |
| Ethernet LAN: | Yes |
| Ethernet interface type: | Gigabit Ethernet |
| LAN controller: | Realtek RTL8111H |
| Top Wi-Fi standard: | Not available |
| ATX Power connector (24-pin): | Yes |
| Number of SATA III connectors: | 4 |
| CPU fan connector: | Yes |
| TPM connector: | Yes |
| Front panel audio connector: | Yes |
| EPS power connector (8-pin): | Yes |
| USB 2.0 connectors: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| Number of chassis fan connectors: | 1 |
| Number of CPU fan connectors: | 1 |
| Number of EPS power connectors (8-pin): | 1 |
| BIOS type: | UEFI AMI |
| Cables included: | SATA |
| Supported storage drive types: | HDD & SSD |
| RAID support: | Yes |
| Supported storage drive interfaces: | M.2, SATA III |
| Number of storage drives supported: | 5 |
| Ethernet LAN (RJ-45) ports: | 1 |
| HDMI ports quantity: | 1 |
| Line-in: | Yes |
| DisplayPorts quantity: | 1 |
| PS/2 ports quantity: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 2 |
| Microphone in: | Yes |
| DisplayPort version: | 1.4 |
| USB 2.0 ports quantity: | 4 |
| VGA (D-Sub) ports quantity: | 1 |
| PCI Express x1 (Gen 3.x) slots: | 1 |
| Number of M.2 (M) slots: | 1 |
| PCI Express x16 (Gen 5.x) slots: | 1 |
