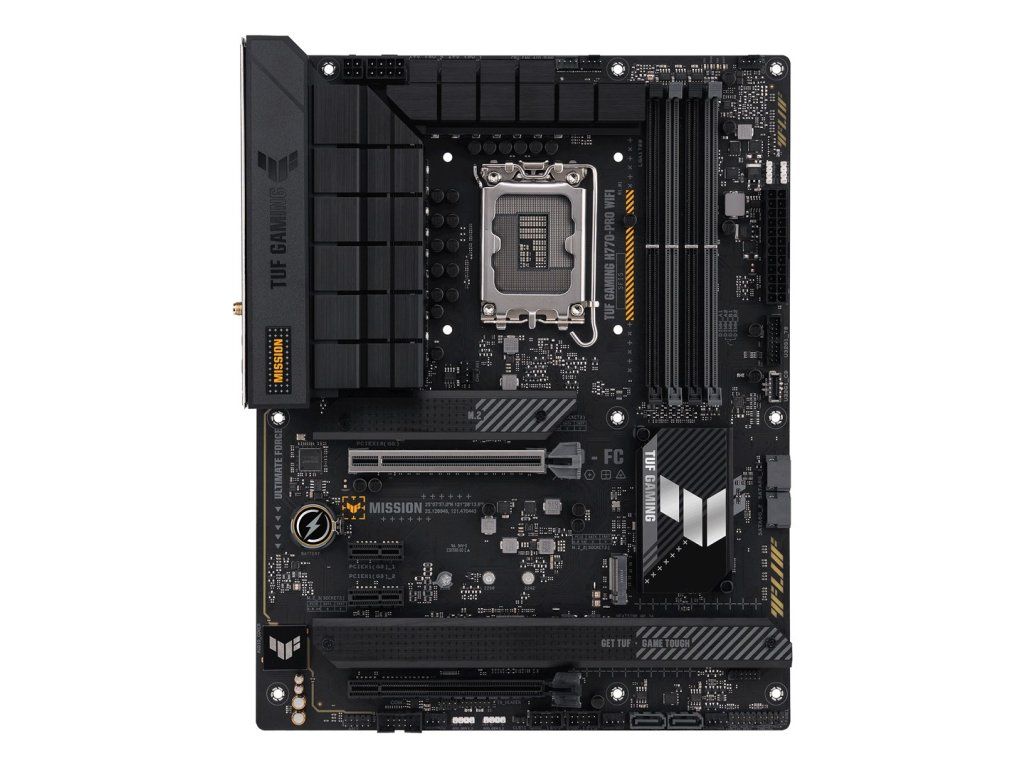

ASUS TUF GAMING H770-PRO WIFI Intel H770 LGA 1700 ATX
Kod: PLYASU1700050
Dostava sljedeći dan
Na bilo koje mjesto
Garancija isporuke
Neoštećena roba
Preko 3.000 mjesta točenja
Po cijeloj Hrvatskoj
Detaljan opis proizvoda
Nema dostupnog opisa proizvoda
Dodatni parametri
| Kategorija: | Motherboards Socket-1700 |
|---|---|
| Težina: | 1.85 kg |
| EAN: | 4711387008249 |
| Supported processor sockets: | LGA 1700 |
| Processor manufacturer: | Intel |
| Compatible processor series: | Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i5, Intel® Celeron® |
| Processor socket: | LGA 1700 |
| Maximum number of SMP processors: | 1 |
| Parallel processing technology support: | Not supported |
| Motherboard chipset: | Intel H770 |
| Power source type: | ATX |
| Motherboard form factor: | ATX |
| Audio output channels: | 7.1 channels |
| Motherboard chipset family: | Intel |
| Windows operating systems supported: | Windows 11, Windows 10 |
| Cooling type: | Passive |
| Unbuffered memory: | Yes |
| Supported memory clock speeds: | 5800, 5400, 7000, 6200, 5200, 6600, 6400, 5600, 7200, 4800 MHz, 6000, 5000, 6800 |
| Maximum internal memory: | 128 GB |
| Supported memory clock speed (max): | 7200 MHz |
| Memory channels: | Dual-channel |
| ECC сompatibility: | Non-ECC |
| Memory slots type: | DIMM |
| Supported memory types: | DDR5-SDRAM |
| Number of memory slots: | 4 |
| Depth: | 244 mm |
| Width: | 305 mm |
| Bluetooth: | Yes |
| Top Wi-Fi standard: | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards: | Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), 802.11g, 802.11a, Wi-Fi 6 (802.11ax), 802.11b |
| Ethernet LAN: | Yes |
| Bluetooth version: | 5.2 |
| Wi-Fi: | Yes |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| USB 2.0 connectors: | 2 |
| Number of SATA III connectors: | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 2 |
| Thunderbolt headers: | 1 |
| EPS power connector (8-pin): | Yes |
| Front panel audio connector: | Yes |
| Number of chassis fan connectors: | 4 |
| Chassis intrusion connector: | Yes |
| Peripheral (Molex) power connectors (4-pin): | 1 |
| Number of COM connectors: | 1 |
| ATX Power connector (24-pin): | Yes |
| Front panel connector: | Yes |
| CPU fan connector: | Yes |
| 12V power connector: | Yes |
| RGB LED pin header: | Yes |
| BIOS type: | UEFI AMI |
| Package weight: | 1.98 kg |
| Package height: | 270 mm |
| Package depth: | 75 mm |
| Package width: | 340 mm |
| Cables included: | SATA |
| User guide: | Yes |
| Supported storage drive interfaces: | M.2, SATA III |
| Supported storage drive types: | HDD & SSD |
| RAID support: | Yes |
| RAID levels: | 1, 10, 5, 0 |
| Number of storage drives supported: | 8 |
| Number of HDDs supported: | 4 |
| DisplayPorts quantity: | 1 |
| DisplayPort version: | 1.4 |
| S/PDIF out port: | Yes |
| USB 3.2 Gen 2x2 Type-C ports quantity: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 4 |
| HDMI ports quantity: | 1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| HDMI version: | 2.1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 2 |
| WiFi-AP antenna jack: | 2 |
| Headphone outputs: | 1 |
| Microphone in: | Yes |
| Line-in: | Yes |
| PCI Express x16 (Gen 5.x) slots: | 1 |
| Number of M.2 (M) slots: | 4 |
| PCI Express x1 (Gen 3.x) slots: | 2 |
| PCI Express x16 (Gen 4.x) slots: | 1 |
| Warnings: | Avoid direct contact with electronics to prevent electrostatic damage., Before starting any maintenance or installation, disconnect the product from the power supply., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal. |
