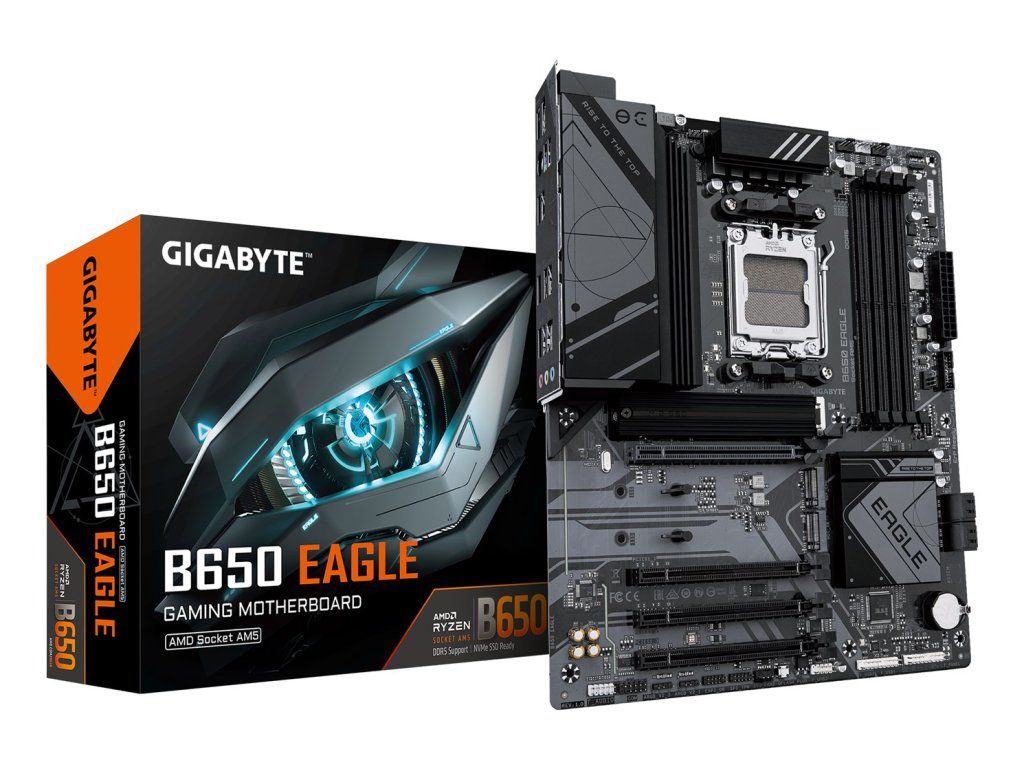

GIGABYTE B650 EAGLE Motherboard - AMD Ryzen 9000 Series CPUs, 12+2+2 Phases VRM, up to 7600MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 2
Kod: PLYGIGAM50022
Dostava sljedeći dan
Na bilo koje mjesto
Garancija isporuke
Neoštećena roba
Preko 3.000 mjesta točenja
Po cijeloj Hrvatskoj
Detaljan opis proizvoda
Nema dostupnog opisa proizvoda
Dodatni parametri
| Kategorija: | Motherboards Socket-AM5 |
|---|---|
| Težina: | 1.695 kg |
| EAN: | 4719331863081 |
| Warranty period: | 3 year(s) |
| Compatible processor series: | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM5 |
| Supported processor sockets: | Socket AM5 |
| DirectX version: | 12.0 |
| Maximum resolution: | 4096 x 2160 pixels |
| Parallel processing technology support: | Not supported |
| HDCP: | Yes |
| Audio chip: | Realtek ALC897 |
| Product colour: | Bronze |
| Windows operating systems supported: | Windows 11 x64, Windows 10 x64 |
| Motherboard chipset family: | AMD |
| PC health monitoring: | Voltage, Water cooling, Fan, Temperature |
| Audio output channels: | 7.1 channels |
| Motherboard chipset: | AMD B650 |
| Power source type: | ATX |
| Motherboard form factor: | ATX |
| Memory channels: | Dual-channel |
| Unbuffered memory: | Yes |
| Supported memory clock speed (max): | 7600 MHz |
| Supported memory types: | DDR5-SDRAM |
| Memory slots type: | DIMM |
| Maximum internal memory: | 256 GB |
| Number of memory slots: | 4 |
| Supported memory clock speeds: | 7000, 6800, 6600, 5200, 4400, 6400, 6200, 5600, 7200, 6000, 7600 MHz, 4800 MHz |
| ECC сompatibility: | Non-ECC |
| Maximum internal memory per slot: | 64 GB |
| Height: | 35 mm |
| Depth: | 244 mm |
| Width: | 305 mm |
| Ethernet LAN: | Yes |
| Wi-Fi: | No |
| Ethernet interface type: | Gigabit Ethernet |
| LAN controller: | Realtek RTL8111H |
| ATX Power connector (24-pin): | Yes |
| TPM connector: | Yes |
| Number of SATA III connectors: | 4 |
| EPS power connector (8-pin): | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| Front panel connector: | Yes |
| CPU fan connector: | Yes |
| Front panel audio connector: | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors: | 1 |
| USB 2.0 connectors: | 3 |
| RGB LED pin header: | Yes |
| Serial port headers: | 1 |
| 12V power connector: | Yes |
| Number of chassis fan connectors: | 3 |
| Number of RGB LED pin headers: | 4 |
| Number of CPU fan connectors: | 2 |
| Number of water pump connectors: | 2 |
| Desktop Management Interface (DMI) version: | 2.7 |
| Clear CMOS jumper: | Yes |
| BIOS type: | UEFI AMI |
| Package weight: | 1.82 kg |
| Package width: | 335 mm |
| Package depth: | 270 mm |
| Package height: | 80 mm |
| Screws included: | Yes |
| Batteries included: | Yes |
| Bundled software: | Norton Internet Security (OEM version) LAN bandwidth management software |
| RAID support: | Yes |
| Supported storage drive interfaces: | M.2, SATA III |
| RAID levels: | 0, 10, 1 |
| Number of HDDs supported: | 4 |
| Number of storage drives supported: | 7 |
| Supported storage drive types: | HDD & SSD |
| Ethernet LAN (RJ-45) ports: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 2 |
| Headphone outputs: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: | 1 |
| USB 2.0 ports quantity: | 6 |
| HDMI ports quantity: | 1 |
| HDMI version: | 2.1 |
| Line-in: | Yes |
| Microphone in: | Yes |
| DisplayPorts quantity: | 1 |
| DisplayPort version: | 1.4 |
| PS/2 ports quantity: | 1 |
| PCI Express x16 (Gen 4.x) slots: | 1 |
| Number of M.2 (M) slots: | 3 |
| PCI Express x16 (Gen 3.x) slots: | 3 |
| 1st M.2 highest PCI Express generation: | 5.0 |
| 1st M.2 largest key size: | 25110 |
| 2nd M.2 highest PCI Express generation: | 4.0 |
| 3rd M.2 highest PCI Express generation: | 4.0 |
| 3rd M.2 largest key size: | 22110 |
| 2nd M.2 largest key size: | 22110 |
| Battery type: | CR2032 |
| Number of battery cells: | 1 |
| Battery technology: | Lithium-Manganese Dioxide (LiMnO2) |
| Battery weight: | 3 g |
| Lithium weight per battery: | 0.07 g |
| Products per shipping (inner) case: | 1 pc(s) |
| Country of origin: | China |
| Warnings: | Avoid contact with liquids to prevent electronic damage., Do not disassemble to avoid damage to internal components and loss of warranty., Dispose of in accordance with local regulations for electronic waste. |
