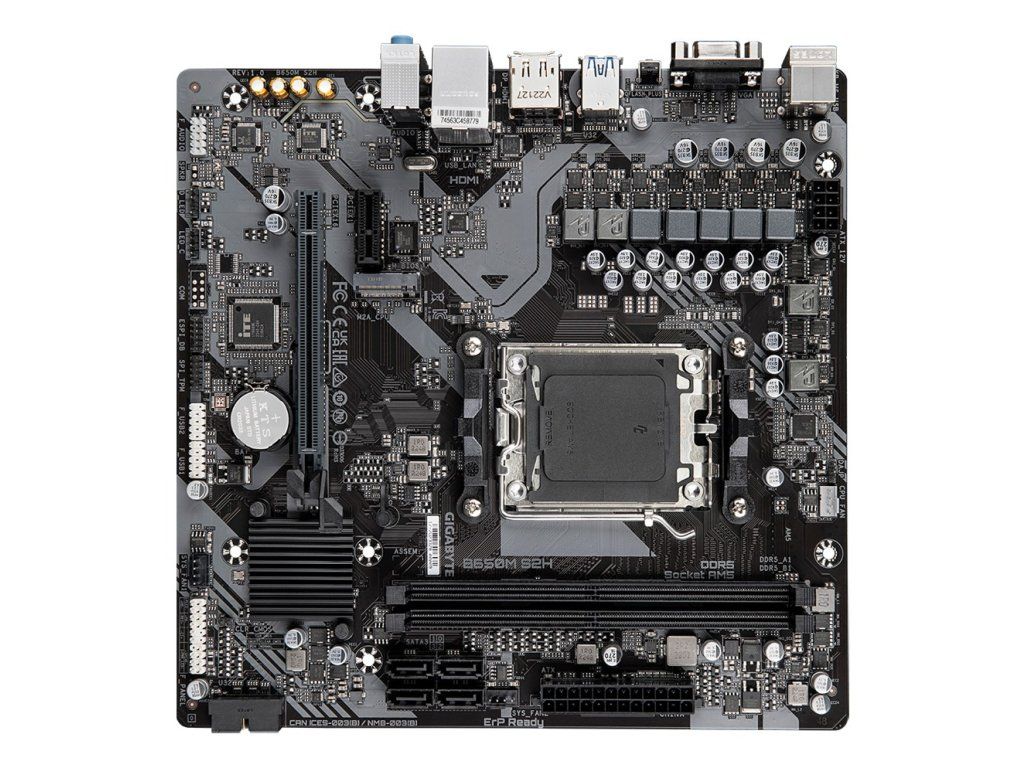

GIGABYTE B650M S2H Motherboard - AMD Ryzen 9000 Series CPUs, 5+2+2 Phases VRM, up to 6400MHz DDR5 (OC), 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1
Kod: PLYGIGAM50016
Dostava sljedeći dan
Na bilo koje mjesto
Garancija isporuke
Neoštećena roba
Preko 3.000 mjesta točenja
Po cijeloj Hrvatskoj
Detaljan opis proizvoda
Nema dostupnog opisa proizvoda
Dodatni parametri
| Kategorija: | Motherboards Socket-AM5 |
|---|---|
| Težina: | 0.85 kg |
| EAN: | 4719331856298 |
| Warranty period: | 3 year(s) |
| Processor socket: | Socket AM5 |
| Processor manufacturer: | AMD |
| Supported processor sockets: | Socket AM5 |
| Compatible processor series: | AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series |
| Maximum resolution: | 4096 x 2160 pixels |
| HDCP: | Yes |
| DirectX version: | 12.0 |
| Parallel processing technology support: | Not supported |
| PC health monitoring: | Fan, Voltage, Temperature |
| Cooling type: | Passive |
| Windows operating systems supported: | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family: | AMD |
| Audio chip: | Realtek ALC897 |
| Audio output channels: | 7.1 channels |
| Product colour: | Bronze |
| Power source type: | ATX |
| Motherboard chipset: | AMD B650 |
| Motherboard form factor: | micro ATX |
| Supported memory types: | DDR5-SDRAM |
| Number of memory slots: | 2 |
| Memory slots type: | DIMM |
| Maximum internal memory per slot: | 64 GB |
| Supported memory clock speed (max): | 6400 MHz |
| ECC сompatibility: | Non-ECC |
| Memory channels: | Dual-channel |
| Supported memory clock speeds: | 6400, 6000, 5200, 6200, 4400, 5600, 4800 MHz |
| Unbuffered memory: | Yes |
| Maximum internal memory: | 128 GB |
| Height: | 35 mm |
| Depth: | 225 mm |
| Width: | 230 mm |
| Ethernet LAN: | Yes |
| Ethernet interface type: | Gigabit Ethernet |
| Wi-Fi: | No |
| LAN controller: | Realtek RTL8111H |
| RGB LED pin header: | Yes |
| 12V power connector: | Yes |
| Number of CPU fan connectors: | 1 |
| Number of EPS power connectors (8-pin): | 1 |
| ATX Power connector (24-pin): | Yes |
| Number of SATA III connectors: | 4 |
| EPS power connector (8-pin): | Yes |
| TPM connector: | Yes |
| CPU fan connector: | Yes |
| Number of RGB LED pin headers: | 2 |
| Front panel connector: | Yes |
| Front panel audio connector: | Yes |
| USB 2.0 connectors: | 2 |
| Number of chassis fan connectors: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| Desktop Management Interface (DMI) version: | 2.7 |
| BIOS type: | UEFI AMI |
| Clear CMOS jumper: | Yes |
| Package width: | 265 mm |
| Package depth: | 265 mm |
| Package weight: | 917 g |
| Package height: | 54 mm |
| Screws included: | Yes |
| Batteries included: | Yes |
| Bundled software: | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Number of HDDs supported: | 4 |
| RAID levels: | 0, 10, 1 |
| Supported storage drive interfaces: | M.2, SATA III |
| Supported storage drive types: | HDD & SSD |
| RAID support: | Yes |
| Number of storage drives supported: | 5 |
| Line-in: | Yes |
| VGA (D-Sub) ports quantity: | 1 |
| Headphone outputs: | 1 |
| HDMI version: | 2.1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 2 |
| HDMI ports quantity: | 1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| PS/2 ports quantity: | 1 |
| DisplayPort version: | 1.4 |
| Microphone in: | Yes |
| DisplayPorts quantity: | 1 |
| USB 2.0 ports quantity: | 4 |
| PCI Express x16 (Gen 4.x) slots: | 1 |
| PCI Express x1 (Gen 3.x) slots: | 1 |
| 1st M.2 largest key size: | 2580 |
| 1st M.2 highest PCI Express generation: | 4.0 |
| Number of M.2 (M) slots: | 1 |
| Number of battery cells: | 1 |
| Battery weight: | 3 g |
| Lithium weight per battery: | 0.07 g |
| Battery technology: | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type: | CR2032 |
| Products per shipping (inner) case: | 1 pc(s) |
| Country of origin: | China |
| Warnings: | Do not disassemble to avoid damage to internal components and loss of warranty., Avoid contact with liquids to prevent electronic damage., Dispose of in accordance with local regulations for electronic waste. |
