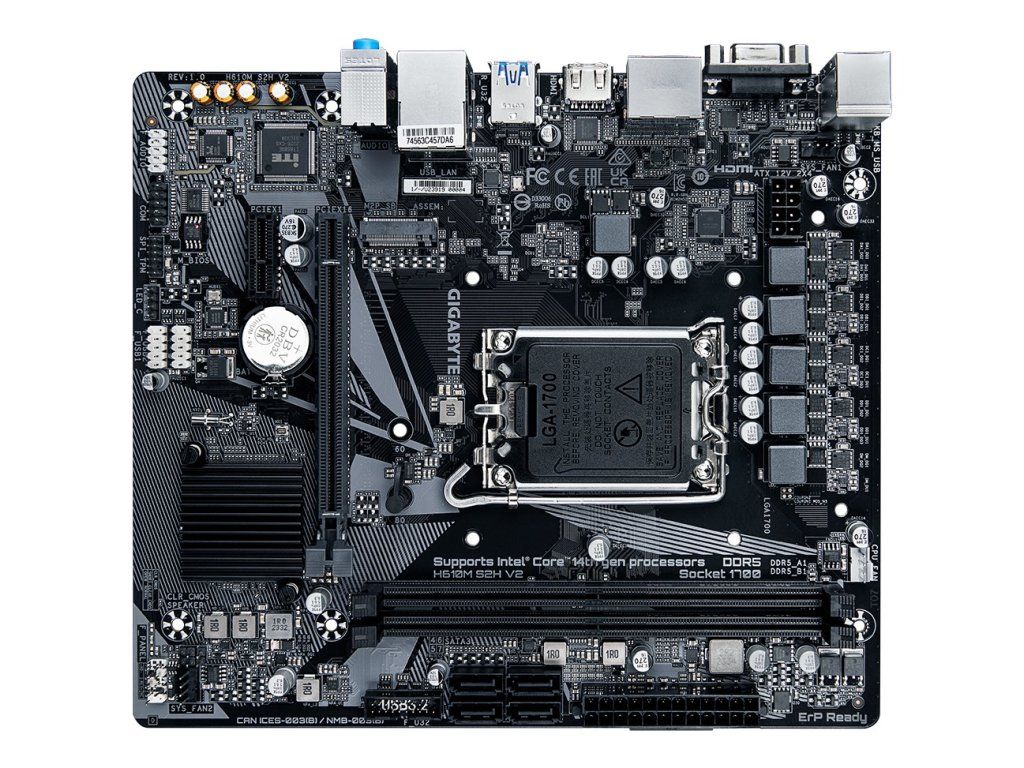

GIGABYTE H610M S2H V2 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Phases Digital VRM, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
Kod: PLYGIG1700067
Dostava sljedeći dan
Na bilo koje mjesto
Garancija isporuke
Neoštećena roba
Preko 3.000 mjesta točenja
Po cijeloj Hrvatskoj
Detaljan opis proizvoda
Nema dostupnog opisa proizvoda
Dodatni parametri
| Kategorija: | Motherboards Socket-1700 |
|---|---|
| Težina: | 0.69 kg |
| EAN: | 4719331859817 |
| Warranty period: | 3 year(s) |
| Compatible processor series: | Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Processor manufacturer: | Intel |
| Maximum number of SMP processors: | 1 |
| Supported processor sockets: | LGA 1700 |
| Processor socket: | LGA 1700 |
| Maximum internal memory supported by processor: | 96 GB |
| HDCP: | Yes |
| Maximum resolution: | 4096 x 2304 pixels |
| On-board graphics card: | Yes |
| Graphics card family: | Intel |
| On-board graphics card model: | Intel® HD Graphics |
| Graphics card: | HD Graphics |
| Motherboard form factor: | micro ATX |
| PC health monitoring: | Fan, LED, Water cooling, Voltage, Temperature |
| Cooling type: | Active |
| Audio chip: | Realtek ALC897 |
| Motherboard chipset family: | Intel |
| Windows operating systems supported: | Windows 11 x64, Windows 10 x64 |
| Audio output channels: | 7.1 channels |
| Power source type: | ATX |
| Motherboard chipset: | Intel H610 Express |
| Product colour: | Black |
| ECC сompatibility: | ECC & Non-ECC |
| Memory channels: | Dual-channel |
| Supported memory clock speed (max): | 5600 MHz |
| Memory slots type: | DIMM |
| Supported memory types: | DDR5-SDRAM |
| Number of memory slots: | 2 |
| Supported memory clock speeds: | 5200, 4800 MHz, 4400, 5600 |
| Supported memory module capacities: | 12GB, 48GB, 1GB, 32GB, 8GB, 2GB, 4GB |
| Maximum internal memory: | 96 GB |
| Unbuffered memory: | Yes |
| Depth: | 215 mm |
| Width: | 230 mm |
| Height: | 35 mm |
| Ethernet LAN: | Yes |
| Ethernet interface type: | Gigabit Ethernet |
| Wi-Fi: | No |
| Number of COM connectors: | 1 |
| Number of SATA III connectors: | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| CPU fan connector: | Yes |
| TPM connector: | Yes |
| EPS power connector (8-pin): | Yes |
| Front panel connector: | Yes |
| Front panel audio connector: | Yes |
| Serial port headers: | 1 |
| ATX Power connector (24-pin): | Yes |
| Number of chassis fan connectors: | 2 |
| RGB LED pin header: | Yes |
| USB 2.0 connectors: | 2 |
| 12V power connector: | Yes |
| Clear CMOS jumper: | Yes |
| BIOS type: | UEFI AMI |
| Clear CMOS button: | Yes |
| Desktop Management Interface (DMI) version: | 2.7 |
| Package width: | 265 mm |
| Package depth: | 235 mm |
| Package weight: | 690 g |
| Package height: | 52 mm |
| Cables included: | SATA |
| Batteries included: | Yes |
| Bundled software: | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Supported storage drive types: | HDD & SSD |
| Number of storage drives supported: | 1 |
| Number of HDDs supported: | 4 |
| Supported storage drive interfaces: | M.2, SATA |
| Headphone outputs: | 1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| DisplayPorts quantity: | 1 |
| DVI-D ports quantity: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 2 |
| USB 2.0 ports quantity: | 4 |
| Microphone in: | Yes |
| HDMI ports quantity: | 1 |
| PS/2 ports quantity: | 1 |
| VGA (D-Sub) ports quantity: | 1 |
| Number of M.2 (M) slots: | 1 |
| PCI Express x1 slots: | 1 |
| PCI Express x16 slots: | 1 |
| Battery type: | CR2032 |
| Lithium weight per battery: | 0.07 g |
| Battery technology: | Lithium-Manganese Dioxide (LiMnO2) |
| Number of battery cells: | 1 |
| Battery weight: | 3 g |
| Supported DIMM module capacities: | 8GB, 16GB |
| Products per shipping (inner) case: | 1 pc(s) |
| Country of origin: | China |
| Warnings: | Before starting any maintenance or installation, disconnect the product from the power supply., Avoid direct contact with electronics to prevent electrostatic damage., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal. |
