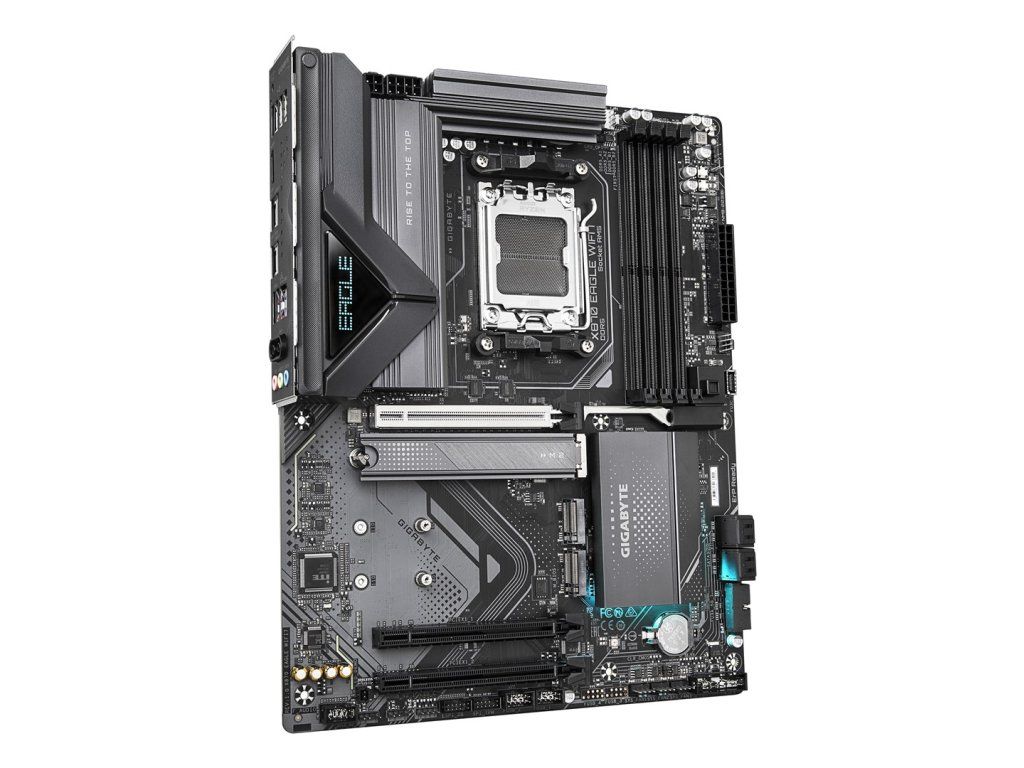

GIGABYTE X870 EAGLE WIFI7 Motherboard - Supports AMD Ryzen 9000 CPUs, 14+2+2 phases VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4
Kod: PLYGIGAM50026
Dostava sljedeći dan
Na bilo koje mjesto
Garancija isporuke
Neoštećena roba
Preko 3.000 mjesta točenja
Po cijeloj Hrvatskoj
Detaljan opis proizvoda
Nema dostupnog opisa proizvoda
Dodatni parametri
| Kategorija: | Motherboards Socket-AM5 |
|---|---|
| Težina: | 1.81 kg |
| EAN: | 4719331864996 |
| Warranty period: | 3 year(s) |
| Processor socket: | Socket AM5 |
| Maximum internal memory supported by processor: | 256 GB |
| Processor manufacturer: | AMD |
| Compatible processor series: | AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series |
| Supported processor sockets: | Socket AM5 |
| On-board graphics card: | No |
| DirectX version: | 12.0 |
| Parallel processing technology support: | Not supported |
| Windows operating systems supported: | Windows 11 x64 |
| Audio chip: | Realtek ALC897 |
| Motherboard chipset family: | AMD |
| Audio output channels: | 7.1 channels |
| PC health monitoring: | Voltage, Temperature, Fan |
| Product colour: | Black |
| Motherboard form factor: | ATX |
| Motherboard chipset: | AMD X870 |
| Supported memory types: | DDR5-SDRAM |
| Number of memory slots: | 4 |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Supported memory clock speed (max): | 8200 MHz |
| Supported memory clock speeds: | 4400 MHz, 6400, 6600, 6200, 6666, 5600, 4800 MHz, 6000, 7200, 7000, 8200, 7600, 7800, 6800, 5200, 8000 MHz |
| Supported memory module capacities: | 24GB, 1GB, 40GB, 16GB, 64GB, 2GB, 4GB, 48GB, 8GB, 32GB |
| Maximum internal memory per slot: | 64 GB |
| Unbuffered memory: | Yes |
| Maximum internal memory: | 256 GB |
| ECC сompatibility: | Non-ECC |
| Width: | 305 mm |
| Depth: | 244 mm |
| Height: | 35 mm |
| LAN controller: | Realtek RTL8125 |
| Wi-Fi: | Yes |
| Bluetooth: | Yes |
| Ethernet LAN: | Yes |
| WLAN controller model: | MediaTek MT7925 |
| Wi-Fi standards: | Wi-Fi 7 (802.11be) |
| Bluetooth version: | 5.4 |
| Top Wi-Fi standard: | Wi-Fi 7 (802.11be) |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Number of EPS power connectors (8-pin): | 1 |
| Number of water pump connectors: | 1 |
| Number of RGB LED pin headers: | 4 |
| RGB LED pin header: | Yes |
| TPM connector: | Yes |
| 12V power connector: | Yes |
| EPS power connector (8-pin): | Yes |
| USB 3.2 Gen 2x2 connectors: | 1 |
| Front panel audio connector: | Yes |
| Number of SATA III connectors: | 4 |
| Peripheral (Molex) power connectors (4-pin): | 1 |
| Front panel connector: | Yes |
| USB 2.0 connectors: | 2 |
| Number of chassis fan connectors: | 4 |
| Number of CPU fan connectors: | 2 |
| CPU fan connector: | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| ATX Power connector (24-pin): | Yes |
| Clear CMOS jumper: | Yes |
| Clear CMOS button: | Yes |
| Desktop Management Interface (DMI) version: | 2.7 |
| BIOS type: | UEFI AMI |
| Package height: | 80 mm |
| Package depth: | 270 mm |
| Package width: | 335 mm |
| Package weight: | 1.94 kg |
| Screws included: | Yes |
| Antenna included: | Yes |
| Batteries included: | Yes |
| Bundled software: | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Number of HDDs supported: | 4 |
| Number of storage drives supported: | 7 |
| Supported storage drive interfaces: | M.2, SATA III |
| RAID support: | Yes |
| Supported storage drive types: | HDD & SSD |
| RAID levels: | 10, 1, 0 |
| HDMI version: | 2.1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 1 |
| WiFi-AP antenna jack: | 2 |
| HDMI ports quantity: | 1 |
| USB4 Gen 2x2 ports quantity: | 2 |
| Headphone outputs: | 1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| USB 2.0 ports quantity: | 4 |
| DisplayPort version: | 1.4 |
| 2nd M.2 largest key size: | 25110 |
| 3rd M.2 highest PCI Express generation: | 4.0 |
| 1st M.2 largest key size: | 25110 |
| 1st M.2 highest PCI Express generation: | 5.0 |
| 2nd M.2 highest PCI Express generation: | 4.0 |
| 3rd M.2 largest key size: | 25110 |
| PCI Express x16 (Gen 5.x) slots: | 1 |
| Number of M.2 (M) slots: | 3 |
| PCI Express x16 (Gen 3.x) slots: | 2 |
| Number of battery cells: | 1 |
| Battery technology: | Lithium-Manganese Dioxide (LiMnO2) |
| Battery weight: | 3 g |
| Battery type: | CR2032 |
| Lithium weight per battery: | 0.07 g |
| Weight: | 1.74 kg |
| Products per shipping (inner) case: | 1 pc(s) |
| Country of origin: | China |
| Warnings: | Avoid contact with liquids to prevent electronic damage., Do not disassemble to avoid damage to internal components and loss of warranty., Dispose of in accordance with local regulations for electronic waste. |
