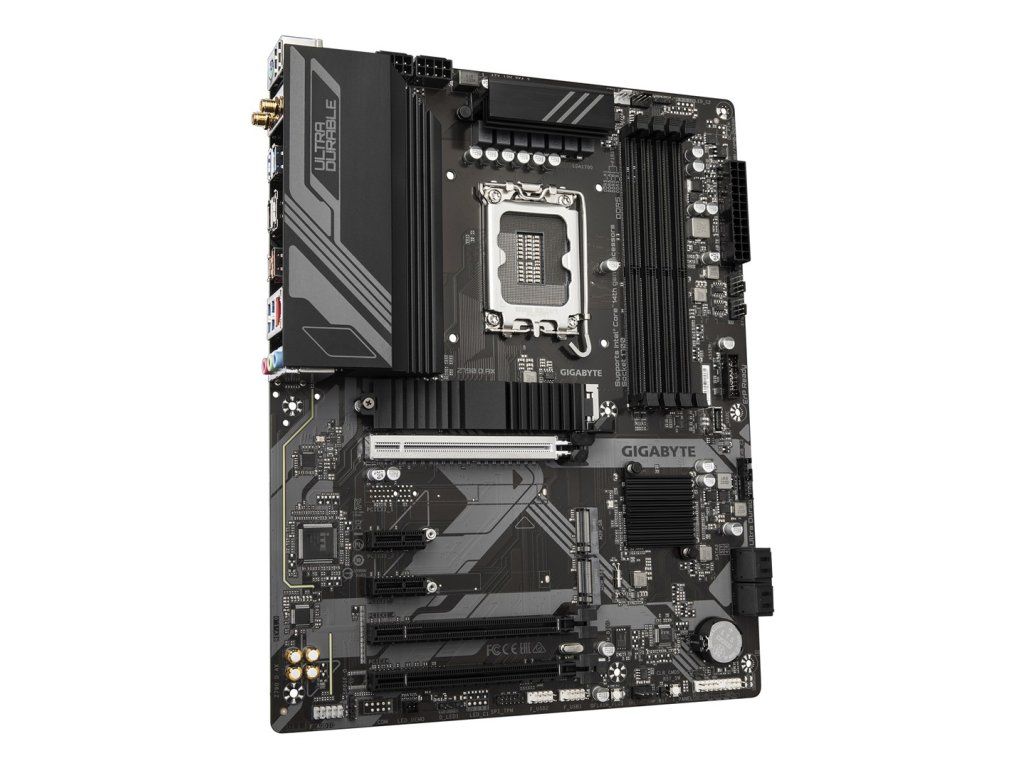

GIGABYTE Z790 D AX Motherboard - Supports Intel Core 14th Gen CPUs, 12+1+1 Phases Digital VRM, up to 7600MHz DDR5 (OC), 3xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2
Kod: PLYGIG1700072
Dostava sljedeći dan
Na bilo koje mjesto
Garancija isporuke
Neoštećena roba
Preko 3.000 mjesta točenja
Po cijeloj Hrvatskoj
Detaljan opis proizvoda
Nema dostupnog opisa proizvoda
Dodatni parametri
| Kategorija: | Motherboards Socket-1700 |
|---|---|
| Težina: | 1.662 kg |
| EAN: | 4719331860592 |
| Warranty period: | 3 year(s) |
| Maximum internal memory supported by processor: | 192 GB |
| Maximum number of SMP processors: | 1 |
| Supported processor sockets: | LGA 1700 |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1700 |
| Compatible processor series: | Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Maximum resolution: | 4096 x 2304 pixels |
| HDCP: | Yes |
| Parallel processing technology support: | Not supported |
| DirectX version: | 12.0 |
| PC health monitoring: | Water cooling, Temperature, Voltage, Fan |
| Motherboard form factor: | ATX |
| Windows operating systems supported: | Windows 10 x64, Windows 11 x64 |
| Power source type: | ATX |
| Motherboard chipset family: | Intel |
| Product colour: | Bronze |
| Audio chip: | Realtek ALC897 |
| Audio output channels: | 7.1 channels |
| Motherboard chipset: | Intel Z790 Express |
| Supported memory types: | DDR5-SDRAM |
| Memory channels: | Dual-channel |
| Number of memory slots: | 4 |
| Supported memory clock speed (max): | 7600 MHz |
| Memory slots type: | DIMM |
| Supported memory module capacities: | 1GB, 16GB, 8GB, 2GB, 4GB, 12GB, 48GB, 32GB |
| ECC сompatibility: | ECC & Non-ECC |
| Supported memory clock speeds: | 5200, 7400, 6200, 6000, 6400, 6600, 6800, 5600, 7200, 7000, 4800 MHz, 4400, 5800, 5400, 7600 MHz |
| Maximum internal memory: | 192 GB |
| Unbuffered memory: | Yes |
| Depth: | 244 mm |
| Height: | 35 mm |
| Width: | 305 mm |
| Bluetooth version: | 5.3 |
| Wi-Fi standards: | Wi-Fi 4 (802.11n), 802.11g, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 5 (802.11ac), 802.11b |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| WLAN controller model: | Intel Wi-Fi 6E AX211 |
| Ethernet LAN: | Yes |
| Wi-Fi: | Yes |
| Top Wi-Fi standard: | Wi-Fi 6E (802.11ax) |
| Bluetooth: | Yes |
| LAN controller: | Realtek RTL8125 |
| Total number of SATA connectors: | 4 |
| Number of SATA III connectors: | 4 |
| RGB LED pin header: | Yes |
| EPS power connector (8-pin): | Yes |
| Front panel audio connector: | Yes |
| Number of EATX power connectors: | 2 |
| Thunderbolt headers: | 2 |
| 12V power connector: | Yes |
| Front panel connector: | Yes |
| ATX Power connector (24-pin): | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| USB 2.0 connectors: | 2 |
| CPU fan connector: | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors: | 1 |
| TPM connector: | Yes |
| Clear CMOS jumper: | Yes |
| Desktop Management Interface (DMI) version: | 2.7 |
| BIOS type: | UEFI AMI |
| Clear CMOS button: | Yes |
| Package width: | 335 mm |
| Package weight: | 1.84 kg |
| Package height: | 80 mm |
| Package depth: | 270 mm |
| Antenna included: | Yes |
| Cables included: | SATA |
| Batteries included: | Yes |
| Bundled software: | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Number of HDDs supported: | 4 |
| RAID levels: | 1, 5, 0, 10 |
| RAID support: | Yes |
| Number of storage drives supported: | 7 |
| Supported storage drive types: | HDD & SSD |
| Supported storage drive interfaces: | M.2, SATA III |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 4 |
| Headphone outputs: | 1 |
| HDMI ports quantity: | 1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 1 |
| WiFi-AP antenna jack: | 2 |
| HDMI version: | 2.1 |
| DisplayPorts quantity: | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity: | 1 |
| USB 2.0 ports quantity: | 2 |
| USB connector type: | USB Type-C, USB Type-A |
| Microphone in: | Yes |
| PS/2 ports quantity: | 1 |
| DisplayPort version: | 1.2 |
| S/PDIF out port: | Yes |
| PCI Express x16 (Gen 4.x) slots: | 1 |
| PCI Express x1 (Gen 3.x) slots: | 2 |
| PCI Express x16 (Gen 3.x) slots: | 1 |
| Number of M.2 (M) slots: | 3 |
| PCI Express x16 (Gen 5.x) slots: | 1 |
| Number of battery cells: | 1 |
| Battery weight: | 3 g |
| Battery technology: | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type: | CR2032 |
| Lithium weight per battery: | 0.07 g |
| Products per shipping (inner) case: | 1 pc(s) |
| Country of origin: | China |
