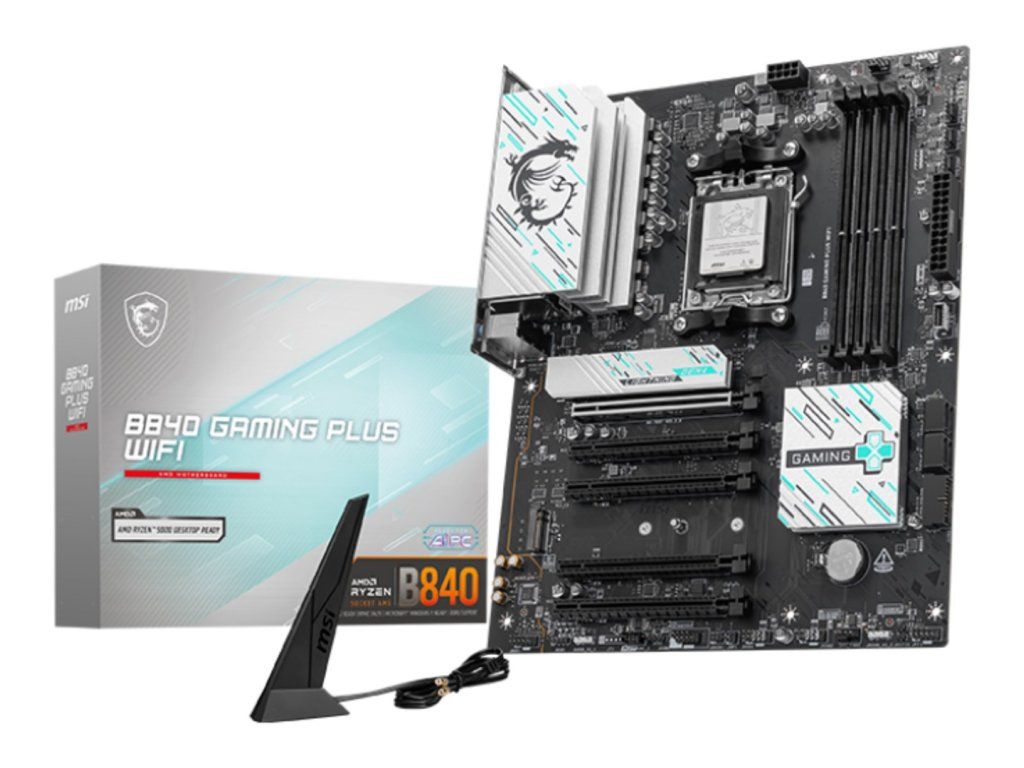

MSI B840 GAMING PLUS WIFI motherboard AMD B840 Socket AM5 ATX
Kod: PLYMISAM50030
Dostava sljedeći dan
Na bilo koje mjesto
Garancija isporuke
Neoštećena roba
Preko 3.000 mjesta točenja
Po cijeloj Hrvatskoj
Detaljan opis proizvoda
Nema dostupnog opisa proizvoda
Dodatni parametri
| Kategorija: | Motherboards Socket-AM5 |
|---|---|
| Težina: | 1.62 kg |
| EAN: | 4711377286589 |
| Supported processor sockets: | Socket AM5 |
| Processor manufacturer: | AMD |
| Compatible processor series: | AMD Ryzen 7000 Series, AMD Ryzen 9000 Series, AMD Ryzen 8000 Series |
| Processor socket: | Socket AM5 |
| Maximum internal memory supported by processor: | 256 GB |
| On-board graphics card: | No |
| PC health monitoring: | CPU, Fan, Voltage, Temperature |
| Windows operating systems supported: | Windows 11 x64 |
| Audio output channels: | 7.1 channels |
| Motherboard chipset: | AMD B840 |
| Motherboard form factor: | ATX |
| Product colour: | Black |
| Motherboard chipset family: | AMD |
| Audio chip: | Realtek ALC897 |
| Memory channels: | Dual-channel |
| Maximum internal memory: | 256 GB |
| Supported memory clock speeds: | 8000 MHz, 5600, 4800 MHz |
| ECC сompatibility: | Non-ECC |
| Supported memory clock speed (max): | 8000 MHz |
| Number of memory slots: | 4 |
| Supported memory types: | DDR5-SDRAM |
| Memory slots type: | DIMM |
| Width: | 243.8 mm |
| Depth: | 304.8 mm |
| Top Wi-Fi standard: | Wi-Fi 7 (802.11be) |
| Bluetooth: | Yes |
| Wi-Fi standards: | Wi-Fi 6E (802.11ax), Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax), 802.11b, 802.11g, Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be) |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Bluetooth version: | 5.4 |
| Wi-Fi: | Yes |
| Ethernet LAN: | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 2 |
| Number of SATA III connectors: | 4 |
| USB 2.0 connectors: | 4 |
| Total number of SATA connectors: | 4 |
| Number of chassis fan connectors: | 5 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors: | 1 |
| Number of CPU fan connectors: | 1 |
| Number of RGB LED pin headers: | 3 |
| Number of water pump connectors: | 1 |
| RGB LED pin header: | Yes |
| BIOS type: | UEFI AMI |
| Supported storage drive types: | HDD & SSD |
| RAID support: | Yes |
| RAID levels: | 1, 10, 0 |
| Supported storage drive interfaces: | M.2, Micro SATA III |
| Number of storage drives supported: | 6 |
| Number of HDDs supported: | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 1 |
| HDMI version: | 2.1 |
| USB 2.0 ports quantity: | 4 |
| Ethernet LAN (RJ-45) ports: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: | 1 |
| HDMI ports quantity: | 1 |
| PCI Express x16 (Gen 3.x) slots: | 4 |
| Number of M.2 (M) slots: | 2 |
| 2nd M.2 largest key size: | 22110 |
| 1st M.2 largest key size: | 2280 |
| 1st M.2 highest PCI Express generation: | 4.0 |
| 2nd M.2 highest PCI Express generation: | 4.0 |
| PCI Express x16 (Gen 4.x) slots: | 1 |
| Warnings: | Dispose of in accordance with local regulations for electronic waste., Do not disassemble to avoid damage to internal components and loss of warranty., Avoid contact with liquids to prevent electronic damage. |
